0000865: [SWAN] Status LED should be Blue light during the deep standby

ID	Project	Category	View Status	Date Submitted	Last Update

0000865	K18X001.00 SKB SWAN	HW	public	2020-07-30 09:22	2021-12-24 11:27

Reporter	(ALTech) SY Yoon	Assigned To	(HW) Sean Chiang	Due Date	2020-08-03 10:14
Priority	normal	Severity	s2-severe	Reproducibility	have not tried
Status	closed	Resolution	fixed

Summary	0000865: [SWAN] Status LED should be Blue light during the deep standby
Description	SKB asked us to provide status LED color for deep standby in this weekly meeting . SKB said that it should be under 1 watt. It should wake up by BT and IR. And Status LED is blue. Is it possible to set LED color to blue when deep standby ?
Tags	No tags attached.
Attach Tags	(Separate by ",")

User List	~~(ALTech) Jason Park~~ , (ALTech) Lonnie Kim , (ALTech) SH Son , (ALTech) Wooshin Kang , (HW) Sean Chiang , (HW) Tom Lee , ~~(PM) Henry Chiou~~ , ~~(RD) Fu-chiang Young~~ , (SW) Jacky Chiang , (SW) Kerwin Chen Username

(HW) Sean Chiang 2020-07-31 20:57 developer ~0003908	Hi Mr.Yoon, I would like to confirm again that the deep standby mode below 1W is on the DC or AC side?

(ALTech) SH Son 2020-08-03 10:21 developer ~0003915	HI Sean Chiang Reply 0000865:0003908 In korea all of product power consumption regulation is AC side So, the DUT have to be certified including AC power consumption (adaptor). Thanks SON

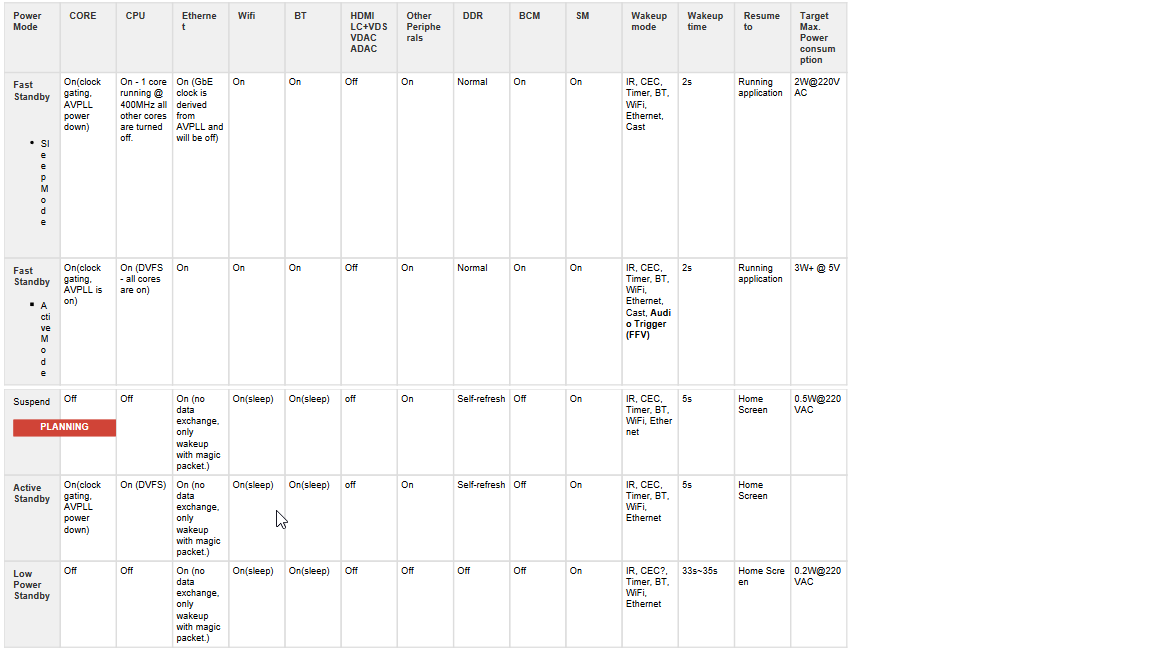

(HW) Sean Chiang 2020-08-03 21:47 developer ~0003925	Hi SH, Thanks for your information. Please refer to the attachment for the standby mode table supported by VS550. In order to meet South Korean's requirements, SWAN must support suspended standby mode, but Synaptics has not confirmed that VS550 supports it. They are reviewing with the RD team internally and will get back us this Wednesday. Will update you once I received information from Synaptics this Wednesday. Regards, Sean VS550 standby mode.png (45,849 bytes) VS550 standby mode.png (45,849 bytes)

Date Modified	Username	Field	Change
2020-07-30 09:22	(ALTech) SY Yoon	New Issue
2020-07-30 09:22	(ALTech) SY Yoon	Status	new => assigned
2020-07-30 09:22	(ALTech) SY Yoon	Assigned To	=> (HW) Sean Chiang
2020-07-30 09:24	(ALTech) SY Yoon	Issue Monitored: (ALTech) Jason Park
2020-07-30 09:25	(ALTech) SY Yoon	Issue Monitored: (PM) Henry Chiou
2020-07-30 09:26	(ALTech) SY Yoon	Issue Monitored: (SW) Kerwin Chen
2020-07-30 09:26	(ALTech) SY Yoon	Issue Monitored: (SW) Jacky Chiang
2020-07-30 09:27	(ALTech) SY Yoon	Issue Monitored: (ALTech) SH Son
2020-07-30 15:53	(ALTech) SH Son	Relationship added	related to 0000866
2020-07-31 08:58	(ALTech) SY Yoon	Issue Monitored: (ALTech) Lonnie Kim
2020-07-31 08:58	(ALTech) SY Yoon	Issue Monitored: (ALTech) Wooshin Kang
2020-07-31 20:33	(HW) Sean Chiang	Issue Monitored: (RD) Fu-chiang Young
2020-07-31 20:34	(HW) Sean Chiang	Issue Monitored: (HW) Tom Lee
2020-07-31 20:34	(HW) Sean Chiang	Issue Monitored: (HW) Sean Chiang
2020-07-31 20:57	(HW) Sean Chiang	Note Added: 0003908
2020-08-03 10:21	(ALTech) SH Son	Note Added: 0003915
2020-08-03 21:47	(HW) Sean Chiang	File Added: VS550 standby mode.png
2020-08-03 21:47	(HW) Sean Chiang	Note Added: 0003925
2020-11-13 11:22	(SW) Jacky Chiang	Project	T99X171.00 SKB Eagle => K18X001.00 SKB SWAN
2021-12-24 11:27	(HW) Sean Chiang	Status	assigned => closed
2021-12-24 11:27	(HW) Sean Chiang	Resolution	open => fixed
